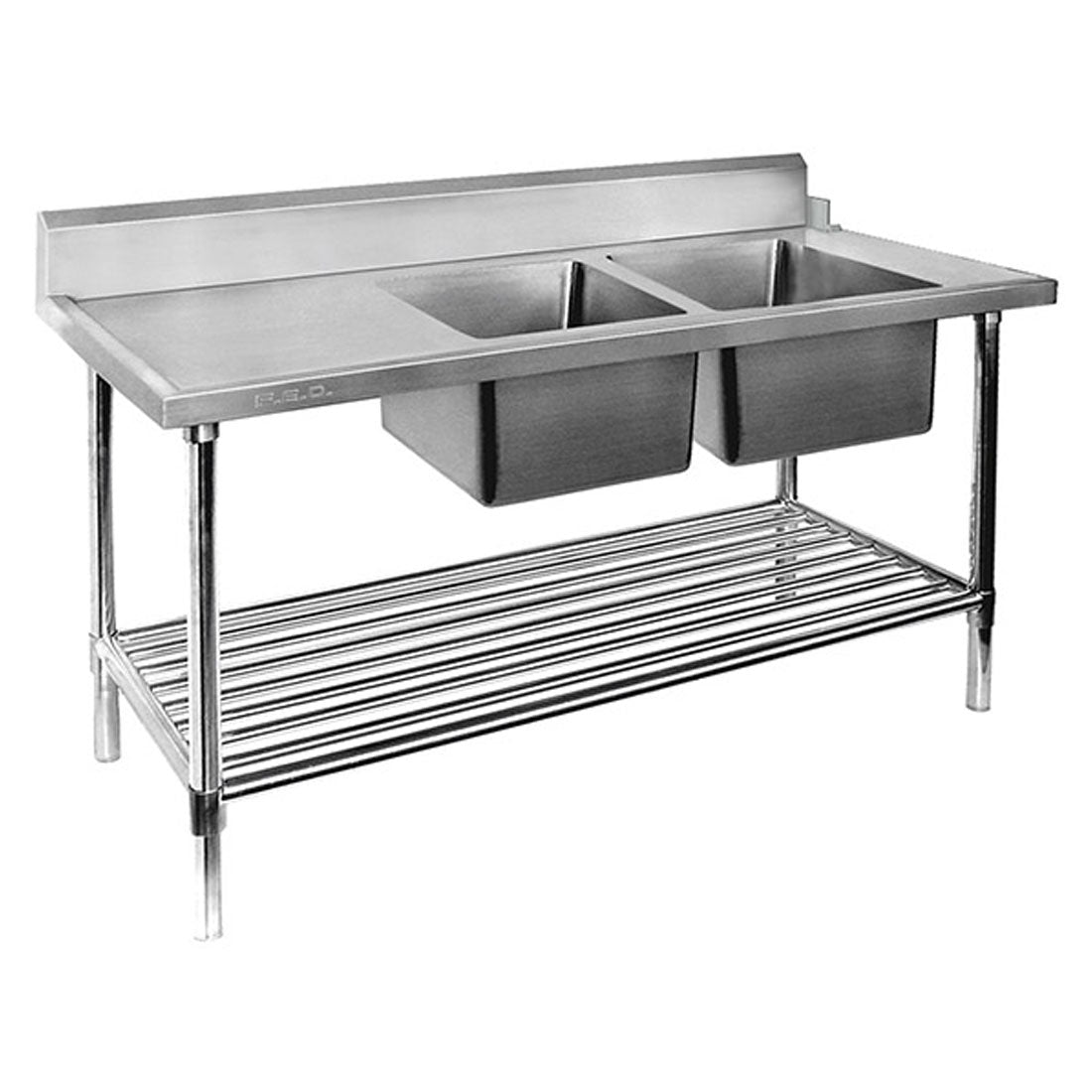

Modular System Right Inlet Double Sink Dishwasher Bench - DSBD7-1800R/A

All Stainless Steel Right Inlet Double Sink Dishwasher Bench - DSBD7-1800R/A

• 1800mm wide
• 700 mm deep — 900 mm high
• Bowl size 450mmW—450D—300H; 90 mm ˜ drain hole
• specially designed for quick simple assembly
• come with instruction manual tools
• supplied flat-packed for ease of transport
• 4 legs per bench
• 2100 2400 mm wide benches have 6 legs
• 1.2 mm S/S
• 15 mm wet edge
• left or right bowl positioning
• bowls are fully welded, polished inside out
• 90 mm ˜ drain hole
• Splashbacks
• Stainless Steel backed
• 150 mm high; 30 mm thick
• bevelled
• fully enclosed
• Legs
• 1.2 mm S/S; 42 mm ˜
• fully adjustable S/S polished disc feet that match the legs perfectly
• castor kits available (lockable)
• Benchtops
• 1.2 mm material; SUS304 (18/8)
• lined with XPS board, 15 mm thick S/S panel
• special S/S €˜U€™ channel reinforcements under
• as the bench size increases so does the number of channels

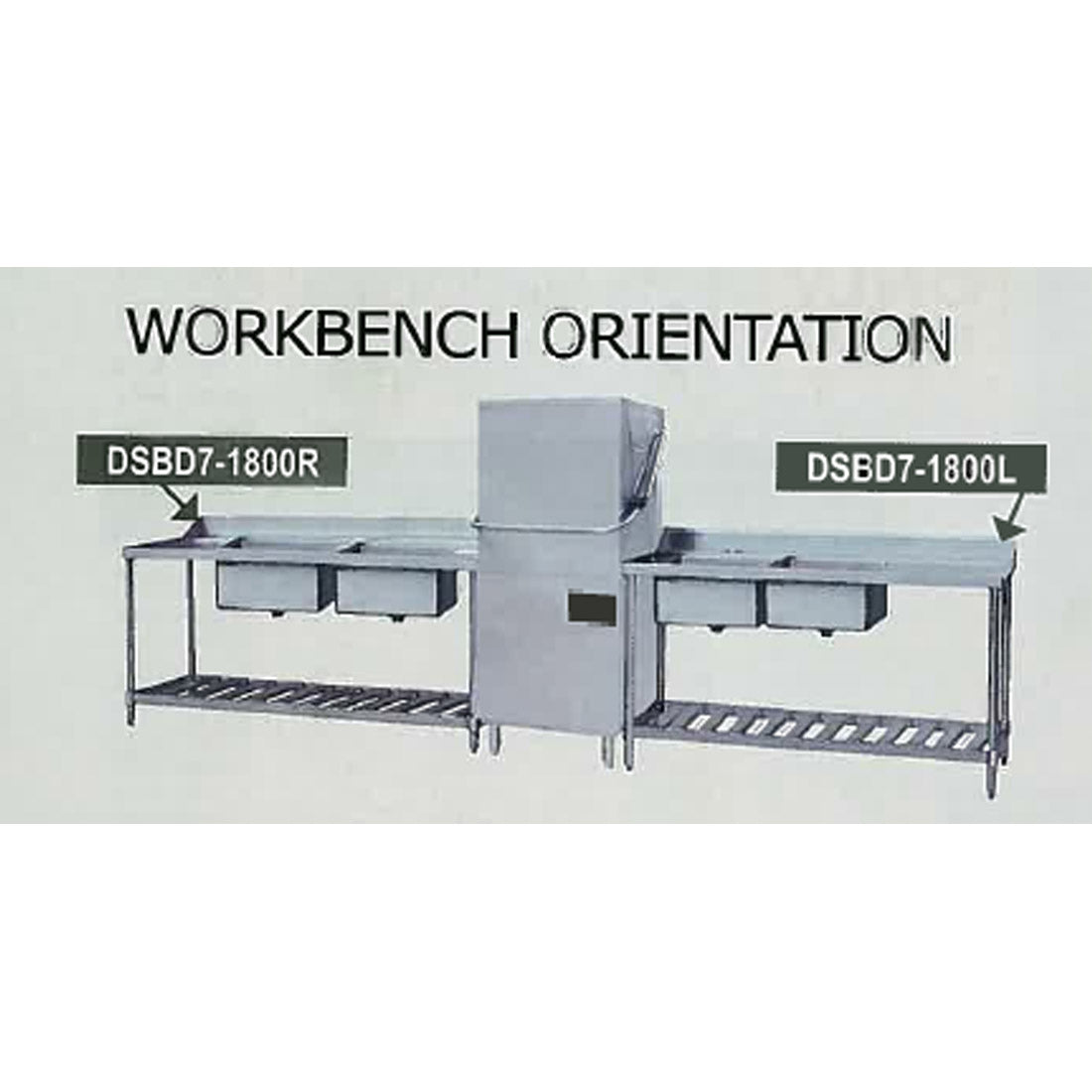

Note
LEFT side sink inlet bench
When facing the bench the dishwasher inlet sinks are on the left side.
RIGHT side sink inlet bench
When facing the bench the dishwasher inlet sinks are on the right side.

2 Years Parts only Warranty
