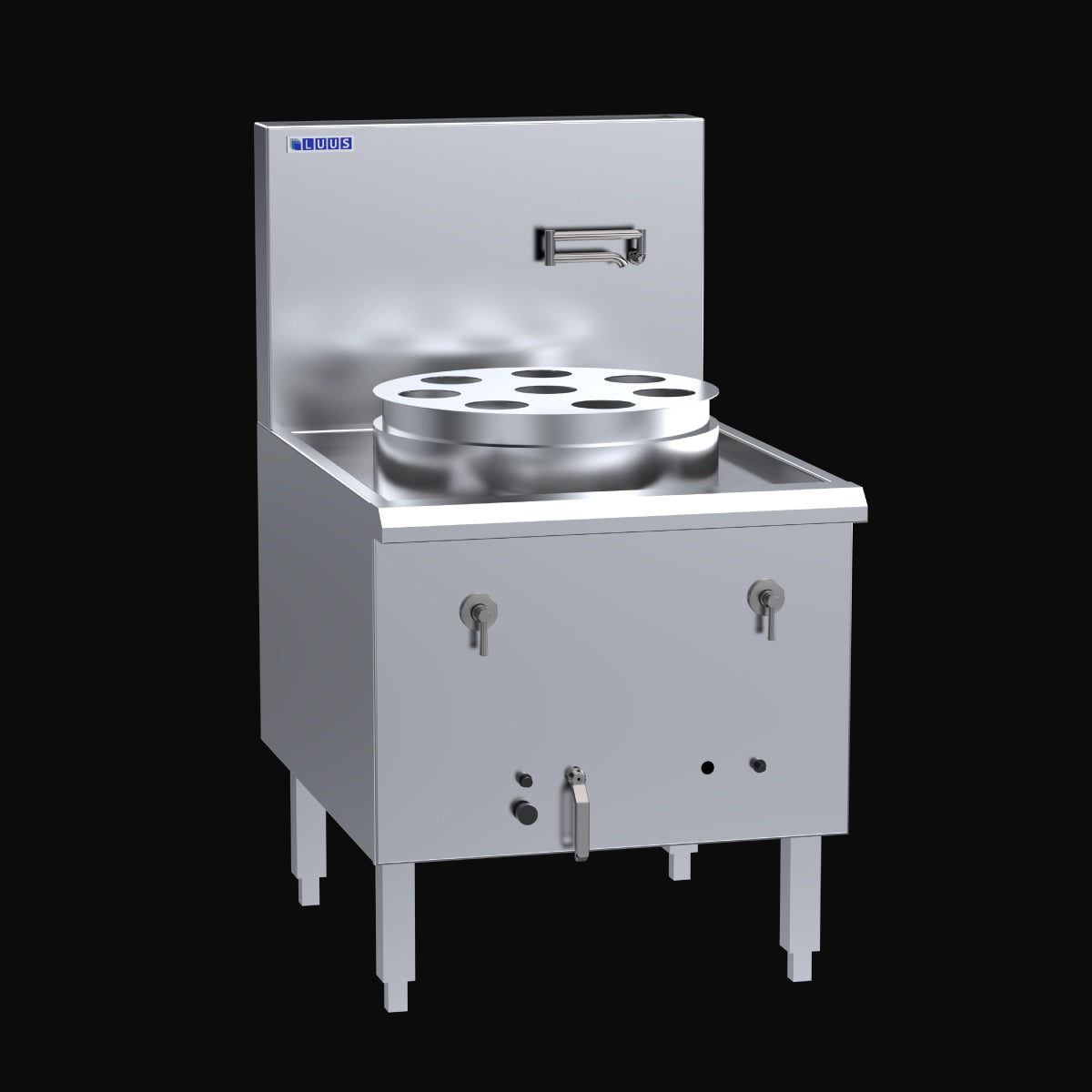

Luus Single Hole Pot Steamer - YC-1
$5,250.00
Sale price
$5,250.00
Regular price
$7,000.00
Skip to product information
Request a Quote
Luus Single Hole Pot Steamer - YC-1
1 Mongolian Burner Yum Cha Steamer with 7 hole perforated tray
The Luus range of traditional steamers have been powering Australian yum cha restaurants since 1998! Ideal for steaming a high volume of dim sum, the YC-1 comes with manual tank refill operation, overflow/drainage systems and traditional water deck cooling.
Key Features
- • 115mj 32 jet mongolian burner with piezo, pilot & FFD
- • Water deck cooling system
- • 1.5mm 304 stainless steel 7 hole steamer plate
- • 1.2mm 304 stainless steel pot & skirting
- • Water deck cooling system
- • Quarter turn water control lever
- • Rear laundry arm with front panel controls
- • Front gutter design for easier cleaning
- • Zinc-aluminium Alloy burner handle
- Overall Construction
- • Welded steel frame construction
- • Cast iron ring with Fiberfrax Durablanket insulation
- • Double flanged watertight gasket seal
- • Rear flue system to aid combustion
- • 1.2mm 304 stainless steel deck, front cover & splashback
- • 0.7mm 304 stainless steel side panels and undertrays
- • 10mm ceramic insulation board under top deck
- • 25mm Fibertex Rockwool insulation in fron & side panels
- • 38mm stainless steel tube legs with adjustable feet
- Cleaning & Servicing
- • Easy access to all parts & components from front
- Options/Accessories
- • 4 piece 304 stainless steel steam rack set
- • Joining caps & strips
- • Rear castors
Specifications
| Width(mm) | 750 |
| Depth(mm) | 950 |
| Height(mm) | 1300 |
| Weight(kg) | 112 |
| Package Length(mm) | 830 |
| Package Depth(mm) | 1025 |
| Package Height(mm) | 1460 |
| Package Weight(kg) | 142 |
| Warranty | 2 Year via Registration |
